Electric bikes are expensive. Even if you buy the cheapest electric bike you can find on deep discount at walmart, it costs $300. (Formerly $400 before they deeply discounted it.) I decided to build my own out of surplus parts and things I could buy at the local Ace Hardware for less than $300. (Mostly, for the fun of the build.)

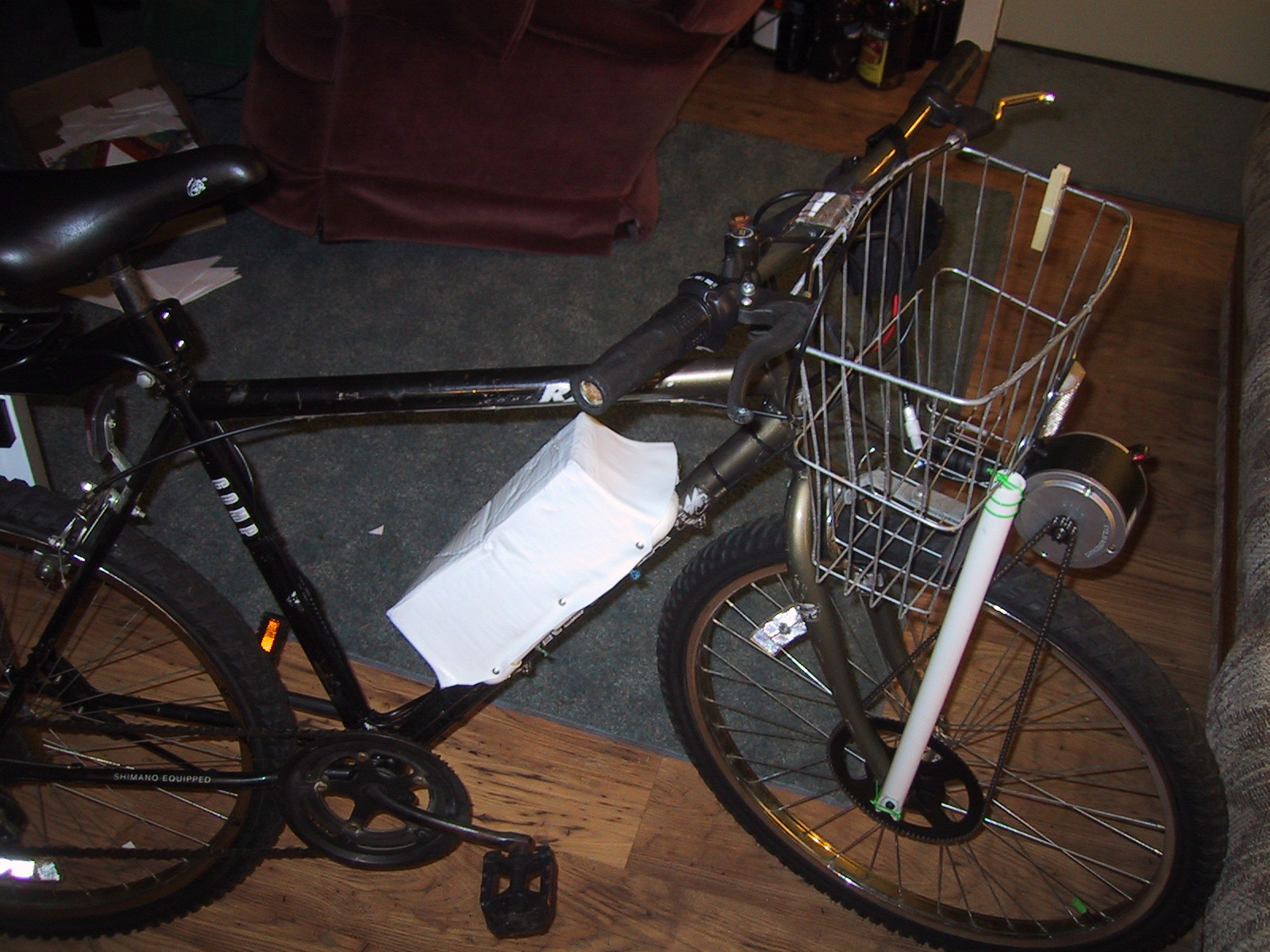

So, I bought a surplus motor controller, handlebar mounted throttle, and a 250 watt electric motor. I bolted the motor to the front of my used $20 bike, built a battery holder out of PVC pipes, and made a vacuum formed cover.
Not counting the (high) cost of labor, here is my bill of materials:
Item – Cost
24vdc 40A motor control – 32.95
Two 12v 5AH sealed Lead Acid Battery – 32
250 watt PM motor – 25
Used Bike – 20
#25 Roller chain – 10
Twist Grip Throttle – 12.75
Consumables (solder/wire) – 10
PVC Pipe Joints (4 elbows, 2 t’s) – 4.74
90 tooth sprocket – 4
Four 10” bungee cords – 3.79
Bicycle wheel hub – 3.5
Four M6 hex-cap bolts – 3
5 pack 25amp fuse – 2.99
Auto Hitch power supply connector – 2.34
Five feet PVC Pipe – 1.5
Blade Fuse Holder – 1.5
Four Fender Washer – 1.2
motor controller case – 1
#25 Roller Chain master link – 1
Four 3/16 quick connects – 0.2
Two M10 1mm pitch nuts – 1.4
Ebike Total: 174.86
Next projects: Adding lights for night biking, and solar charging.
